🖥️ Kiosk PC 4K – Ultra Compact Digital Signage System

The Kiosk PC 4K is a powerful, ultra-compact industrial PC designed for continuous operation. Built for kiosk systems, digital signage, information terminals, trade fairs, and multi-screen installations – reliable, silent, and energy efficient.

With dual HDMI outputs supporting 4K@60Hz, flexible screen modes, and VESA mounting, this system is ideal for professional display control in 24/7 environments.

🛠️ Configuration

• Configuration: None
• Operating System: None

🚀 Key Highlights

• 4K@60Hz support: Smooth playback on high-resolution displays.
• Dual display operation: Mirror or extend screens (Left / Right / Top / Bottom).
• Ultra compact design: Only 0.67L enclosure.
• Low-noise operation: Ideal for noise-sensitive environments.
• VESA mounting: Clean and hidden installation behind displays.
• Perfect for kiosk mode: Compatible with Windows and Linux.

🧠 Hardware Specifications

• Mainboard: GB-BLPD-5005R (Rev. 1.0)
• Processor: Intel® Pentium® Silver J5005
• Memory: 8 GB DDR4 (1× SO-DIMM slot)
• Storage: 128 GB SSD
• Graphics: Intel® UHD Graphics with 4K support

🖥️ Display & Graphics

• 2× HDMI outputs:
  • HDMI 2.0a – up to 4K @ 60Hz
  • HDMI 1.4b – up to 4K @ 30Hz
• Screen mirroring or desktop extension
• Display positioning: Left / Right / Above / Below
• Supports dual-display setups

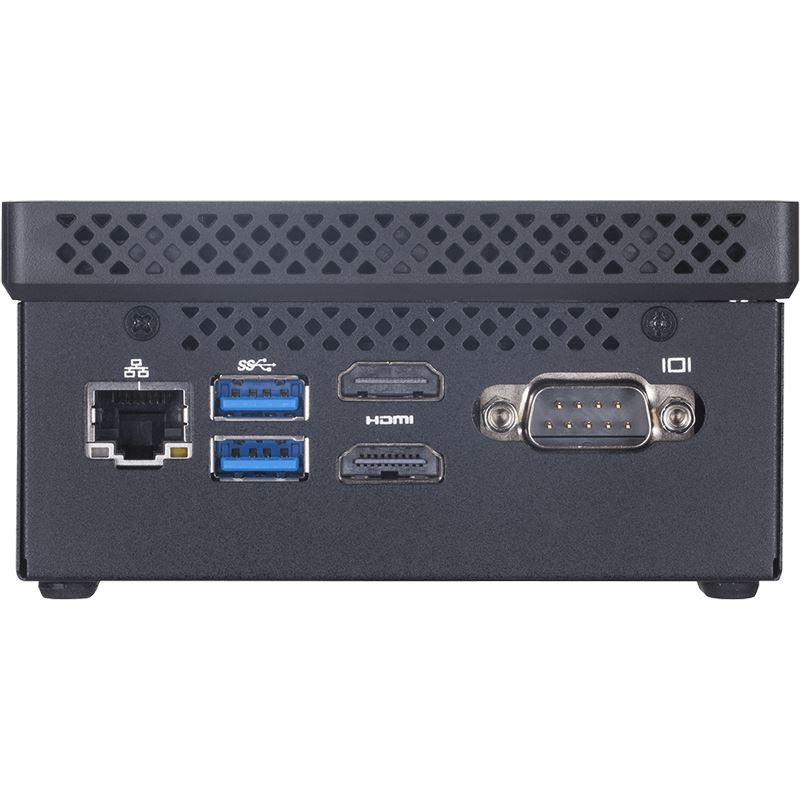

🔌 Connectivity & Ports

• 4× USB 3.0 (including 1× USB Type-C™)
• Gigabit LAN
• Intel® Dual-Band Wi-Fi (802.11ac)
• Bluetooth 4.2
• Headphone & microphone jack

📐 Design & Mounting

• Dimensions: 56.22 × 103 × 116.52 mm
• Chassis volume: Only 0.67 liters
• VESA mount: 75×75 mm & 100×100 mm (included)
• Ideal for hidden mounting behind displays

💼 Typical Use Cases

• Digital signage & advertising displays
• Kiosk & information terminal systems
• Retail window displays
• Menu boards & POS systems
• Trade shows, events & exhibitions
• Industrial monitoring & control displays

⚡ Conclusion

The Kiosk PC 4K combines a compact form factor, reliable Intel® technology, and modern 4K graphics output. The perfect solution for professional kiosk and multi-display applications where space, stability, and performance matter.
